Avantor® ACE® Phenyl HPLC Columns

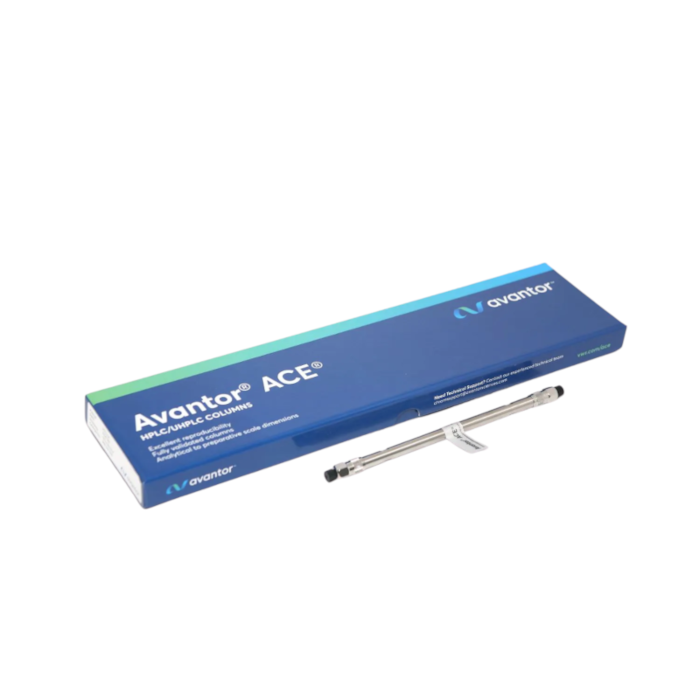

Main image
Click to view image in fullscreen
![]()
All pictures shown are for illustration purpose only. Actual product may vary.
Avantor® ACE® Phenyl columns show a hydrophobicity between C4 and C8 phases, with increased polar selectivity. There is improved performance, stability and reproducibility compared to conventional phenyl phases. Avantor® ACE® Phenyl offers alternative selectivity for aromatic, amine or polar compounds.
Avantor® ACE® Excel® Phenyl columns, with increased pressure rating of 1,000 bar, are available for UHPLC applications in 2, 3 and 5 μm particle sizes.
Features
- Separation of analytes through varying π- π interactions
- Alternative selectivity to C18 columns
- Suitable for the analysis of stereoisomers, steroids, taxanes and substituted aromatics
- Part numbers beginning with ACE have HPLC hardware format with 275 bar / 4,000 psi pressure limit
- Part numbers beginning with EXL have HPLC/UHPLC hardware format with 1,000 bar / 15,000 psi pressure limit
- ACE guard cartridges for analytical columns require stand-alone guard cartridge holder H0001 and column coupler C0001
- ACE UHPLC guard cartridges require holder H0011
Specifications
| ACE® Phenyl | |
| Bonded Phase | Phenyl |
| Particle Type | Fully Porous |
| Particle Size | 2 µm, 3 µm, 5 µm, 10 µm |
| Pore Size | 100 Å |
| Surface Area | 300 m2/g |
| Endcapped | Yes |
| Carbon Load | 9.5% |
| pH Range | 2 - 8 |
| Pressure Limit | ACE hardware - 275 bar EXL hardware - 1000 bar |
| Hardware | Stainless Steel |
| 100% Aqueous Compatible | - |
| USP Designation | L11 |
Literature
Product catalogue containing the full range of Avantor ACE columns
Specifications of the Avantor ACE columns
