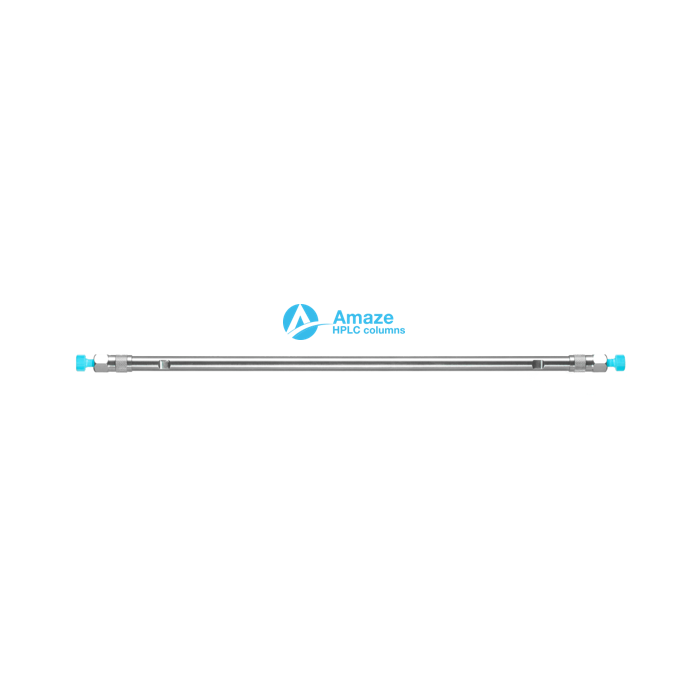

HELIX Amaze Mixed-Mode HPLC Columns

All pictures shown are for illustration purpose only. Actual product may vary.
HELIX Amaze TH mixed-mode HPLC columns contain HILIC, cation exchange, and anion exchange functionalities within one ligand attached to the silica surface. This enables the separation of polar neutral, polar acidic, polar basic, hydrophobic acidic, and hydrophobic basic compounds in one method. By changing the pH of the mobile phase, the strength of basic and acidic groups can be adjusted allowing retention of weakly ionisable groups. HILIC separation with lower concentration of acetonitrile is possible due to the highly polar and ionisable groups on the surface. Optimisation of the separation of critical pairs of compounds can be achieved by changing the amount of organic, buffer pH, buffer concentration, and type of buffer.
Features
- Tri-modal HPLC column with HILIC, cation exchange, and anion exchange properties
- High capacity and loadability of compounds during analysis
- Designed to separate polar neutral, polar acidic, polar basic, hydrophobic acidic and hydrophobic basic compounds in one run
- Adjust retention by optimising amount of organic, buffer pH, buffer concentration, and buffer type
- Amaze mixed-mode range also includes Amaze TR, Amaze QR, Amaze SC, Amaze HD, and Amaze HA for alternative selectivity
- Amaze aromatic and reversed phase combined columns include Amaze PFP, Amaze AR, and Amaze SPF
Specifications
Amaze TH | |
Mode | Mixed-Mode |
Phase | HILIC, cation exchange, and anion exchange |
Particle Type | Fully Porous |
Particle Size | 3 µm, 5 µm, and 10 µm |
Pore Size | 100 Å |
Temperature Range | 20 - 60°C |
Pressure Limit | 1000 bar |
Hardware | Stainless Steel |
