Agilent Quick Connect & Quick Turn Fittings for HPLC

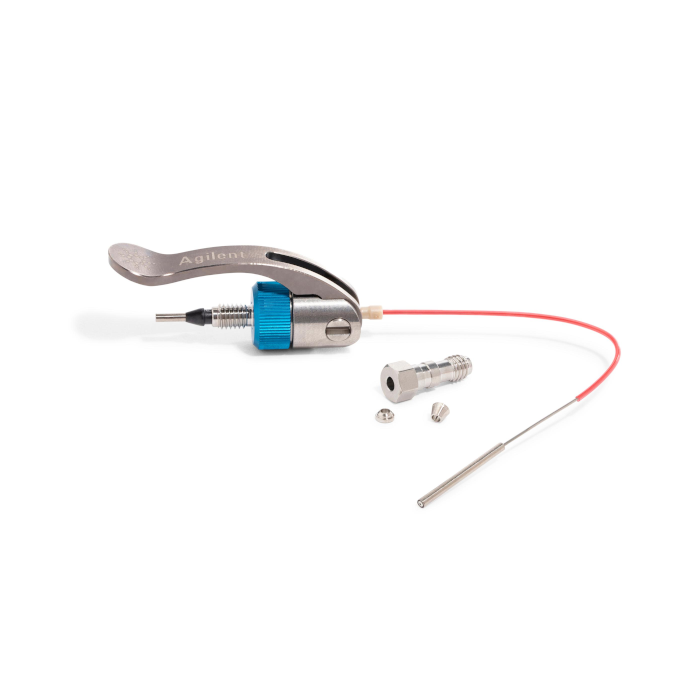

InfinityLab Quick Connect fittings are the only truly "finger-tight," reusable fitting for UHPLC, stable to 1300 bar. There are no tools needed… just use your fingers to close the lever for a perfect connection every time.

For harder to reach areas on your LC instrument, the InfinityLab Quick Turn fitting produces either a finger-tight connection (stable to 600 bar), or a premium UHPLC connection (stable to 1300 bar), with a quick turn of the wrench.

Part Number Product Description Price Qty
product image

Features

  • Truly finger-tight connection: no special training is needed, so differences in user style will not affect your chromatography
  • Spring-loaded design: now you can make zero dead volume connections with all types of UHPLC columns – as easy as pressing a lever
  • Reliable and reusable: InfinityLab Quick Connect fittings are long lasting, reseal tightly, and are stable up to 1300 bar (18,850 psi) even after 200+ reconnections
  • Fast, easy connections: save time and trouble
  • Winner of the TASIA Award

Specifications

There are two types of InfinityLab fittings.

The InfinityLab Quick Connect fitting is for column connections with 1,300 bar sealability without the need for a wrench.

The InfinityLab Quick Turn fitting is for various flow path connections, including column inlet/outlet, valve, and other connections. This fitting seals up to 600 bar by finger tightening (depending on users and positions of connection) and to 1,300 bar with a wrench.

Both types of fittings have a novel spring-loaded design that constantly pushes the tubing against the receiving port, delivering a reproducible connection with no dead volume for consistent chromatographic performance. The stem length is adjustable through the spring, which makes both fittings compatible with all types of LC columns.

In addition, the InfinityLab Quick Connect fitting has a unique lever-actuated design, so that the spring assembly, including the lever, applies a constant force that presses the ferrule onto the tubing, avoiding tubing slippage. Little force is required to tighten the fitting to 1,300 bar (18,850 psi) without any tools.

Literature

Top supplies to optimise your LC workflow
Consumable items for Agilent HPLC systems
Technical overview of the InfinityLab fittings

Contains information on the InfinityLab Quick Connect and Quick Turn fittings
